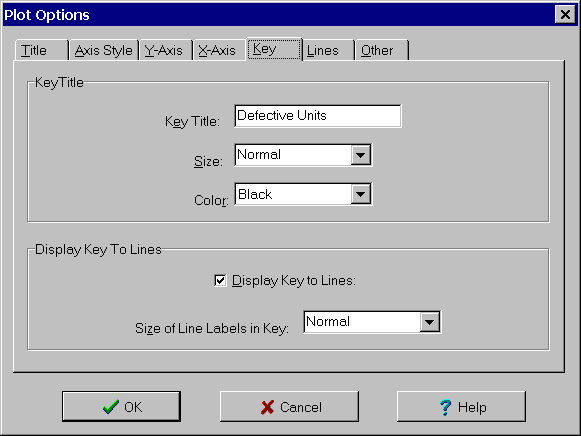

Key Tab of Plot Options Dialog Box
The Key tab of the Plot Options dialog box is used to specify whether a key to the lines is displayed and whether it has a title. This key shows a label for each line. The labels are on the Lines tab. The controls are:
Key Title:
Key Title Edit Box: Text to use for key title. Leave blank if no title is desired.
Size Combo Box: Relative size of key title. Default is normal size. Select one of the sizes in the list or enter a size.
Color List Box: Color for key title. Select one of the colors in the list.
Display Key to Lines:
Display Key to Lines Check Box: Check if key to lines should be displayed.
Size of Line Labels in Key Combo Box: Relative size to display line labels. Default is normal size. Select one of the sizes in the list or enter a size.
