Table Range Dialog Box

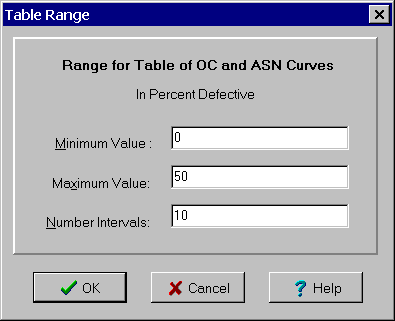

Used to enter the table range determining the both the number of rows and range of values covered in the table in Tab 7 of the Evaluation window. The controls are:

Minimum Value: Real number representing smallest value displayed on Table. It cannot be below any lower bound for the characteristic displayed. For Defective Units, Defects per Unit and Defects Per Quantity, the lower bound is zero.

Maximum Value: Real number representing largest value displayed on Table. It cannot be above any upper bound for the characteristic displayed. For Defective Units the lower bound is 100% defective.

Number of Intervals: Positive integer controlling number of rows in table. The number of rows is one larger than the number of intervals.

When done, click the OK button or press the Enter key to close the dialog box and update the table using the new range. Clicking the Cancel button or pressing the Esc key instead restores the table range to their original values and closes the dialog box.

This dialog box is displayed by selecting the Table Range menu item on the popup menu for on the Table tab in the ~~Evaluation~~ window.
