Table of Trials Window

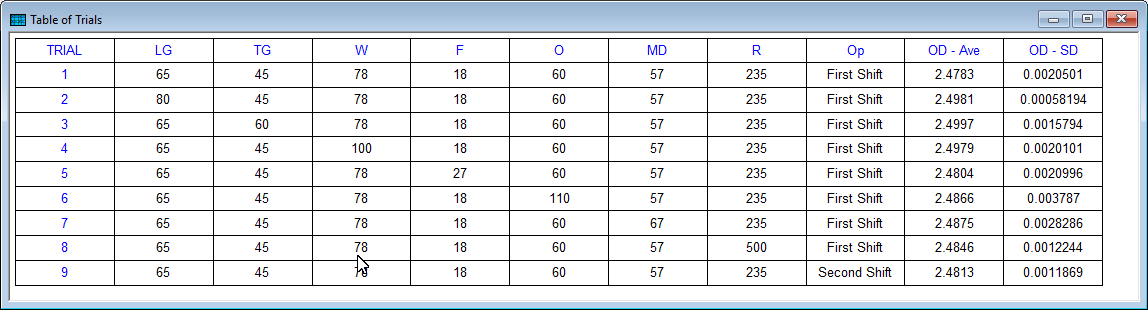

The Table of Trials window displays a table of the input settings for each trial along with the corresponding results for the outputs for all trials that have been run. Either the average ("AVE") and standard deviation ("SD") or the percent defective ("PD") is given for each output. It is automatically updated whenever a new trial is run. It does not display any of the capability study results. It is displayed by selecting the Table of Trials button on the Control Panel window and by selecting the Show Table of Trials menu item on the Data menu or the associated toolbar button.

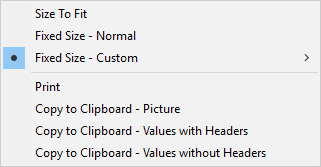

Pressing the F1 key displays this help page. Right clicking on the window displays the following popup menu:

There are menu items to print and copy the graphic. The Print and Copy menu items on the File menu and toolbar perform the same function. There are also menu items for resizing the graphic.
