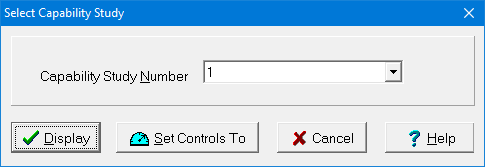

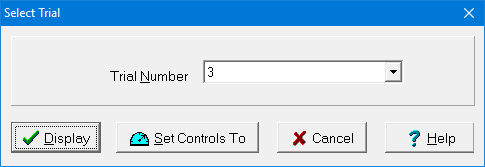

Select Trial/Capability Study Dialog Boxes





The Select Trial/Capability Study dialog boxes are used to select a trial or capability study.  Once it is selected, click one of the following buttons:

    Display button: This displays the selected trial in a Single Trial window or the selected capability study in a Capability Study window.  If a window is already opened, it is brought to the top.  Otherwise a new window is opened.
    Set Controls to button: This sets the targets of the inputs in the Control Panel window to the settings for the selected trial or capability study.  Tolerances per the Maintenance Panel Dialog Box are not changed.

Clicking the Cancel button or pressing the Esc key instead closes the dialog box without taking any action.  This dialog box is displayed by selecting the Display/Set Controls for Trial or the Display/Set Controls for Capability Study menu items on the Data menu or the corresponding buttons on the toolbar.
